Washer Won't Drain

This is another easy problem to solve. First separate into electrical or mechanical causes:

Electrical Issues

First question, "Is the pump motor running?"  On front loaders the pump noise is distinctive. Turn on  the pump by selecting the Drain Spin Cycle or going onto the diagnostic mode and selecting Drain. A dead pump usually means a bad pump. Confirm that 110VAC is present at the pump winding. In most cases power will be present and the problem will actually be the pump itself.

ge pump

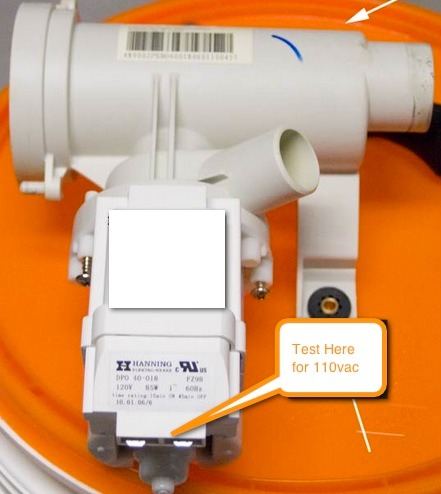

GE Adora Pump





Mechanical Issues

If the pump is humming or warm, there is a mechanical issue.  This will be the usual case.  There is always the possibility of a kinked or clogged drain hose. Aways check that first. Corrugated hoses are less prone to kinking then solid rubber ones.

kinked hose

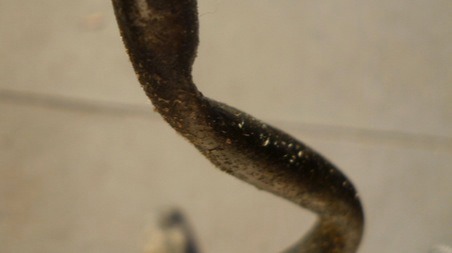

Kinked Rubber Drain Hose

1.  Check to see if the pump or inlet to the pump is clogged. Inspect and fix it. Some of these small pumps will sound like they are working or even worse they will pump fine when you test them and yet they will fail after you leave the job. The pump may be just weak or quits after heating up. If the washer is full of water clamping pliers can be very helpful.

hose pliers2

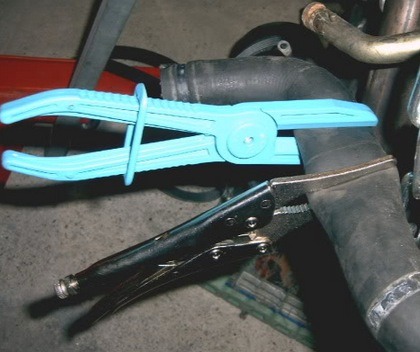

Useful Radiator Hose Clamping Pliers

clogged duet

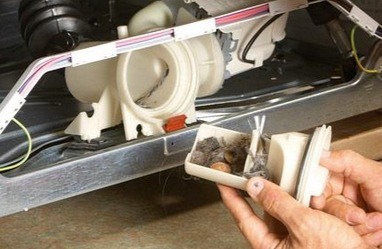

Clogged Whirlpool Duet Pump (behind lower panel)

lg pump2

Kenmore by LG Pump

ge pin

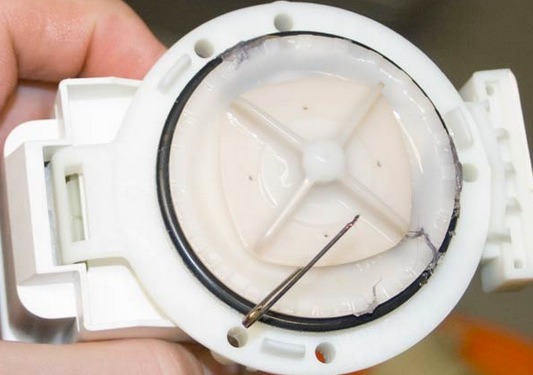

Pin in GE Pump

Debris often gets past the sump filter and into the pump impeller.
